Kymograph |
 |

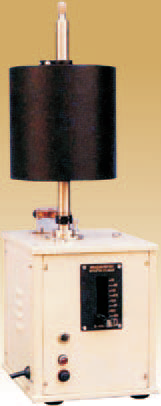

Electric Recording Drum (Student Kymograph)
|
- S. S. Axle with screw lift device.
- Eugage, disengage lever, contact block, 6” x 6” aluminium casted cylinder with brass lock. Smooth, jerk free performance. Hobb cut gears of gun metal.
- Speeds: 640, 320, 25, 12.5, 2.5, 1.25, 0.25, 0.12 mm per sec.
|
 |
| |
| Super Speed Kymograph (Long Extensions) |
- Provided compete with marometer, electric fine marker. Guies continous, smooth, jerkfree performance.
- Speeds: 1024, 512, 256, 128, 64, 32, 16, 8, 4, 2 mm per minute.
- Latest Improvement: Speed correction
arrangement for dead accurate speed.
|
| |
|
| |
| |
| |
| |
| |
|
