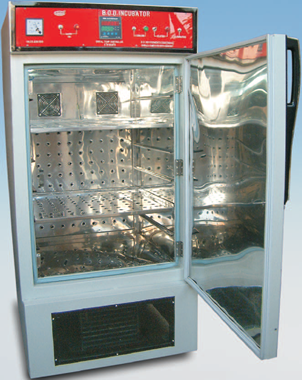

Incubator |
 |
| Introduction: |
- Designed for low temperature incubator and determination of Bio- Chemical oxygen Demand (B.O.D).
- Double wall construction. Inner chamber made of richly anodized aluminum or highly polished stainless steel sheet with self supports for wide range of shelf spacing.
- Supplied with two/three removable perforated shelves. Exterior made out of thick mild steel sheet duly finished in white stoving enamel paint or powder
coating, colour combination.
- Outer double wall door is provided with magnetic gasket and lock & key arrangement.
- Inner door made out of clear acrylic sheet allowing inspection of material in the chamber with out disturbing the chamber temperature.
- Door operated inner illumination has been provided.
- The gap between walls of equipment are filled with glass wool for temp insulation.
- The cabinet is mounted on castors.
- Temperature is controlled by a sensitive thermostat from 5° C to 55 °C + 1°C. For lower temp working a standard cooling unit with a sealed compressor with protective devices has been provided below the chamber for safe and efficient working.
- Heating arrangement has been made with in the chamber for higher temp working the temp can be regulated with the range by means of a high precision double action thermoregulated inner air circulating system is provided to achieve uniform temperature in the whole chamber.
- A control panel is provided with various indicators, on-off switch, L-shaped thermometer supplied with cord and plug etc.
- The equipment is workable on 220V AC 50Hz single phase.
|
 |
| |
| Chamber sizes: |
| Size in mm |
Size in Inches |
Capacity in Cu.ft. |
| 610x455x410 |
24”x18”x16” |
4.00 |
| 825x500x415 |
33”x20”x16.6 |
6.1 |
| 865x650x575 |
34”.6”x22.6”x22.6” |
10.0 |
| 900x650x575 |
36”x26”x23” |
12.0 |
|
| |
| Optional |
- Digital temp indicator-cum-controller
- Timer 0-24 hours day night cycle .
- Co /air mixture intel nozzle 2
- Audio visual alarm
- Automatic Voltage stabilizer 3 KWA (Must Recomended)
|
| |
| |
|
|
