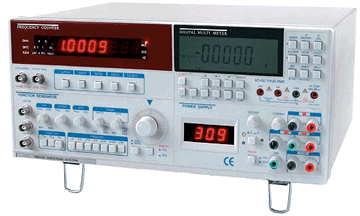

| Multifunction Test System YB9170 |
|
| Parameters |
| Output wave |
Sine, rectangular, triple, ramp, pulse, ttl level |
| Frequency range |
1Hz~10MHz 7 steps |
| Output impedance |
50Ω±10%/600Ω±10% |
| VCF Range |
0~10VDC |
| attenuation |
-20dB |
| Output Amplitude |
2Vpp~20Vpp(Open), 1Vpp~10Vpp(50Ω) |
| DC offset |
-10V~+10V |
| Sine distortion |
＜1%(@1kHz ) |
| Rectangular symmetry |
＜3%(@1kHz ) |
| Rise /fall time |
＜30ns(5Vpp,1MHz) |
| Duty cycle adjust |
20%~80% |
| linearity of triple |
≤100kHz:＜1% |
| TTL rise/fall time |
＜30ns(@1kHz ) |
| TTL output level |
＞3V |
| Sweep frequency time |
20ms~2s |
| Sweep type |
Linearity, log |
|
| |
| Power Supply ( Fixed & Variable ) |
| Channel1 |
Channel 2 |
Channel 3 |
| Output voltage |
Fixed 5V |
Output voltage |
Fixed ±15V |
Output voltage |
0~30V |
| Output current |
2A |
Output current |
1A |
Output current |
0~3A |
| Ripple |
＜2mVrms |
Ripple |
＜2mVrms |
Ripple |
＜1mVrms |
| Load offset |
0.1%±70mV |
Load offset |
0.1%±50mV |
Load offset |
0.1%±40mV |
| Source offset |
0.1%±30mV |
Source offset |
0.1%±30mV |
Source offset |
0.1%±20mV |
| Max. output current |
2.2A |
Max output current |
1.2A |
Max. current |
3.3A |
| |
|
|
|
Display accuracy |
voltage:±1%+2 digit |
| |
|
|
|
|
Current :±2%+2 digit |
| .Frequency Counter |
|
|
|
|
.Frequency counter |
| |
|
|
|
Frequency range |
CH-A:1Hz~20MHz |
| |
|
|
|
|
CH-B:20MHz~2.7GHz |
| |
|
|
|
Input sensitivity |
CH-A:40mVrms sine or100mVpp |
| |
|
|
|
|
CH-B:40mVrms sine |
| |
|
|
|
Max. input voltage |
CH-A:35Vpp |
| |
|
|
|
|
CH-B:3Vpp |
| |
|
|
|
Input impedance |
CH-A:1MΩ |
| |
|
|
|
|
CH-B:50Ω |
| |
|
|
|
Resolution |
CH-A：0.1Hz(10s) |
| |
|
|
|
|
1Hz(1s), 10Hz(0.1s) (0.1s@1kHz~20MHz) |
| |
|
|
|
|
CH-B：10Hz(10s) |
| |
|
|
|
|
100Hz(1s), 1kHz(0.1s) |
|
| |
| Digital Multimeter |
（DCV） |
Range |
Resolution |
Accuracy |
| 80mV |
1μV |
±(0.3%+5digit) |
| 800mV |
10μV |
±(0.05%+5digit) |
| 8V |
0.1mV |
| 80V |
1mV |
| 800V |
10mV |
±(0.08%+5digit) |
| 1000V |
0.1V |
| |
80mV |
1μV |
±(0.8%+10digit)(50Hz~1kHz) |
| ±(4%+10digit)(1kHz~50kHz) |
| 800mV |
10μV |
±(0.8%+10digit)(50Hz~1kHz) |
| Continuous table |
| ACV(Valid value) |
Range |
Resolution |
Accuracy |
| 8V |
0.1mV |
±(5%+10digit)(1kHz~50kHz) |
| 80V |
1mV |
±(0.5%+10digit)(50Hz~500Hz) |
| 800V |
10mV |
| 1000V |
0.1V |
| (DCA) |
80mA |
1μA |
±(0.1%+5digit) |
| 800mA |
10μA |
| 8A |
0.1mA |
| 20A |
1mA |
| ACA(True valid value) |
80mA |
1μA |
±(0.5%+5digit)(50Hz~500Hz) |
| 800mA |
10μA |
| 8A |
0.1mA |
| 20A |
1mA |
| Resistance (Ω) |
800Ω |
0.01Ω |
±(0.05%+3 digit) |
| 8kΩ |
0.1Ω |
| 80kΩ |
1Ω |
| 800kΩ |
10Ω |
| 8MΩ |
100Ω |
| 80MΩ |
1kΩ |
±(0.08%+3 digit)(0~40MΩ) |
±(2%+3 digit)(40MΩ~80MΩ) |
| Frequency (Hz) |
99.999Hz |
0.001Hz |
±(0.02%+2digit) |
| 999.99Hz |
0.01Hz |
| 9.9999kHz |
0.1Hz |
| 99.999kHz |
1Hz |
| 999.99kHz |
10Hz |
| 9.9999MHz |
100Hz |
| 12.8MHz |
100Hz |
| 128.0MHz |
1kHz |
| 1300.0MHz |
10kHz |
| Rotate speed |
99999 |
1RPM |
±(0.02%+2digit) |
| Capacity |
1nF |
0.1pF |
±(2%+3digit) |
| 10nF |
1pF |
| 100nF |
10pF |
| 1μF |
100pF |
| 10μF |
1nF |
| 100μF |
10nF |
| Diode |
3.000V |
0.001V |
±(3%+2digit) |
| Rectangular output |
Output |
Range |
|
| Amplitude |
3V |
±0.2V |
| Frequency |
0.5Hz~5kHz |
±0.02% |
| Duty cycle |
1%~99% |
±(0.2%+3digit) |
| Physical Characteristics |
Dimension |
165H×370W×360D(mm) |
Weight |
Approx 12.5kg |
|
| |
| |
|
