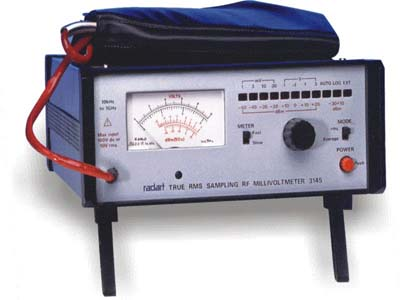

> AC Milivolt meter > AM/ FM Signal Generator > Arbitrary Waveform Generator > Auto Ranging RF Milivolt Meter > Automatic Modulation Meter > Directional Watt Meter > Multi Function Test System > Multifunction Counter > Network Analyzer > RF Attenuator > RF Power Meter > RF Signal Generator > Spectrum Analyzer > Synthesized Signal Generator       Auto Ranging RF Milivolt Meter RF Milli voltmeter has been designed to provide accurate RF level measurements from 20 kHz to 1 GHz. It has useful response from 10 kHz to 1.5 GHz and measures RF voltages from 1mV to 3V F.S. in eight ranges. Linear dB scale from -60 to +23 dBm complements volts scale. It is suitable for RF voltage measurements of broad band amplifiers, oscillators & filters with minimum measuring errors as low capacitive and high resistive probe minimize de-tuning and unwanted phase shifts in feed back networks. It can be operated in auto mode for unknown voltages or the measurement range can be selected manually. Frequency Range 20 KHz to 1GHz Useful readings upto 1.5 GHz True rms or average response Measurement range 1mV to 3V (upto 300V with 100: 1 divider) High sensitivity auto ranging or manual operation Mains or external DC operation Compact and light weight   Parameters                 Frequency Range 20 kHz to 1GHz Voltage Ranges 1 mV to 3 V FS, Selectable Display                      Analog Meter Resolution                                   0.5 dBm  db scale - 0.5 dBm  mv scale - 2% of FS measured in Top Black scale                 3.3% of FS measured in Bottom Black scale Range Selection         Auto or Manual Voltage Accuracy        Basic Accuracy + Frequency Response (<1V rms input) with Tee adaptor and 50 ohms load Basic Accuracy          + 2% FS at 25 °C at 100 MHz Frequency Response + 2% FS (200 kHz to 200 MHz) + 5% FS (50 kHz to 500 MHz) + 11% FS (20 KHz to 1 GHz) Temperature Coefficient +.0.2% FS per °C Input Impedance > 100 KΩ in parallel with 2.5 pf (typical) Logarithmic Range + 10 to -30 dBm 50 Ohms in a single four decade dB scale. Pen Recorder Output   Available from rear panel programme socket.   FS equals 1 V nominal   Output Impedance 2 KΩ Remote Programming Range selected by BCD code, TTL levels. negative logic. General Power requirement      230V AC + 10% Frequency 50Hz + 10% External DC ±.15 V to ± 30 V, 200mA via rear panel connector Operating Temperature:               0 to 55°C Dimensions (Approx.) (HxWxD) 95 x 235 x 275 mm Weight (Approx.) 3.3 Kg. Accessories (supplied) 50 Ohms Tee Connector and 50 Ohms Termination, Mains lead, Probe earthing Clip, Operating Manual Accessories 100 : 1 Divider, BNC to Probe Adaptor, 75 Ohms Tee Accessories (Optional) Connector, 75 Ohms Termination

* Products not listed can be ordered as per request.

* Model number may subject to change without intimation
